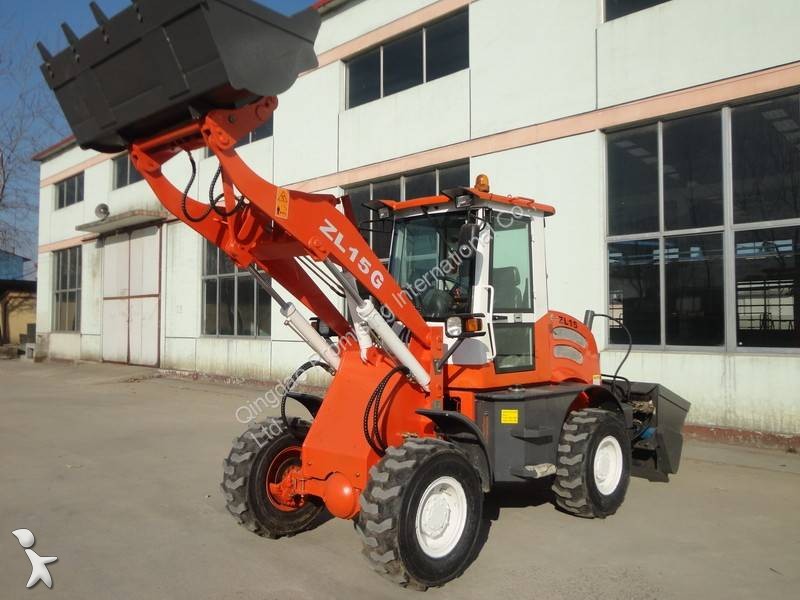

Pá carregadora sobre pneus nova Dragon Machinery ZL15G ZL15G

wheel loader, mini loader, compact loader, front loader, CE wheel loader, CE front loader, CE mini loader

Applications:

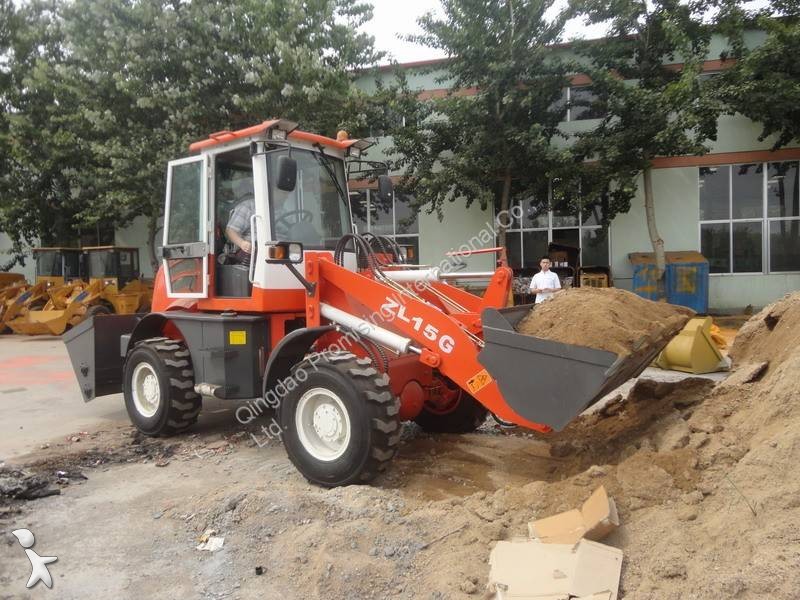

Wheel loader with EURO III engine ZL15G is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. to shovel and load or move earth, sand and stone, coal cinder, trash and other loose materials. This EURO III wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
Features:
enclosed cab with comfortable seat, heater, radio, fan, fire extinguisher, reversing camera, and optional air conditioning; joystick, optional hydraulic quick hitch, multiple optional loader attachments, top beacon
1. Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the 1.5T small loader easy and comfortable to operate and have higher economical and production efficiency;
2. Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the 1.5Ton wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the 1.5 T loader have good off-road performance, trafficability and more traction;

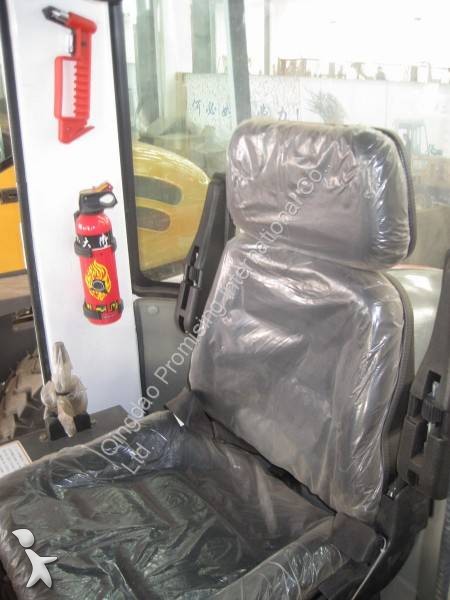

4. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
5. Using 14-17.5-14PR ultra-wide tyres to increase the stability of the whole machine and the service life of tyre;

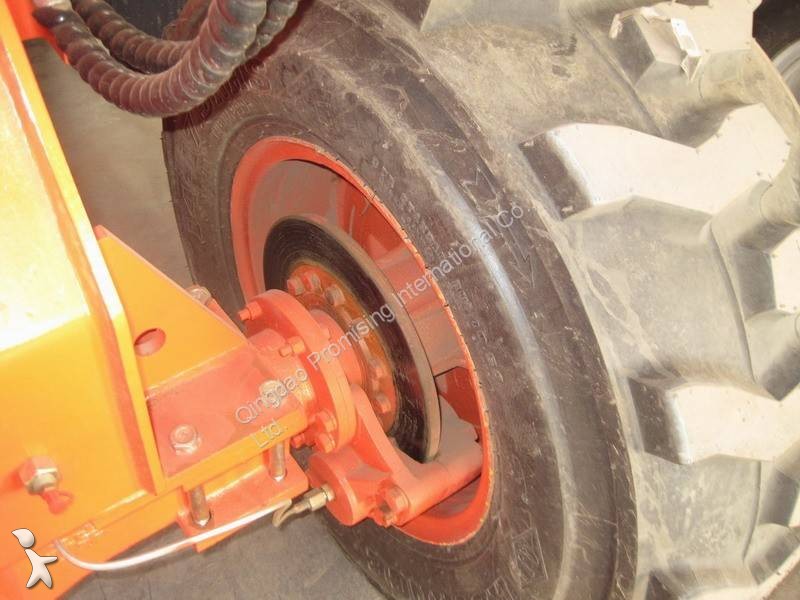

6. Brake system adopts vacuum booster, air over hydraulic caliper disc brake on 4 wheels;
7. This 1.5 Ton capacity wheel loader adopts ZL265 integrated torque converter, the whole machine is fully hydraulic transmission, and the model of axle is hub reduction axle;
8. This compact wheel loader with 1500kg capacity can be optionally equipped with joystick (pilot control system) to make it easy to operate and increase the hydraulic performance of the whole machine;
9. The gearbox of this 1500kg capacity wheel loader adopts electronic speed control valve to lower manual labor, make the operation more comfortable and increase working efficiency;
10. Power system adopts XINCHAI A498BT1 (EURO III) direct injection, environmentally friendly, 4-cylinder engine to make this 1.5T CE loader have strong power and high acceleration, which greatly increase its high working efficiency;
11. This CE loader with 1.5Ton capacity can be equipped with optional quick hitch (quick coupler), and this quick hitch enables this 1.5 Ton wheel loader with CE to change quickly among multiple attachments, such as hay grapple, grass grab, straw grapple, log grab, timber grapple, lumber fork, pallet fork, bale grapple, bale clamps, four-in-one bucket, multi-purpose bucket, straight snow blade, angle snow plow, diagonal snow plough V-shaped snow blade, snow bucket, V snow plow, folding snow plough, snow removal bucket, snow blower, sand spreading bucket, drum grab, barrel grapple, bucket broom, pick-up broom, street sweeper, angle broom, diagonal broom, and hydraulic flail mower, etc.

Main Technical Parameters:
1 .Rated Load: 1500 kg
2. Total Weight: 3450 kg
3. Rated Bucket Capacity: 0.7 CBM
4. Max. Tractive Force: 30 KN
5. Max. Breakout Force: ≥ 32 KN
6. Max. Gradeability: 38°
7. Max. Dumping Height: 2800 mm
8. Max. Dumping Reach: 1000 mm
9. Raising Time: ≤ 5.0 s
10. Total Cycle Time: ≤ 9.5 s
11. Overall Dimensions (L x W x H) : 5060*1690*2630 mm
12. Min. Turning Radius: 3200 mm
13. Engine Model: XINCHAI A498BT1 (EURO III)
14. Engine Type: Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
15. Engine Rated Power: 36.8 kW
16. Engine Rated Speed: 2400 rpm
17. Engine Min. Fuel Consumption Ratio: ≤ 230 g/kW•h
18. Transmission System: ZL265 Integrated Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25 km/h
21. Model of Drive Axle: ZL16 Hub Reduction Axle (small)
22 . Wheel Tread: 1400 mm
23. Wheel Base: 2150 mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 16 Mpa
26. Fuel Tank Capacity: 86 L
27. Service Brake: Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tire Type Specification: 14-17.5-14PR
30. Front Tire Pressure: 0.40 Mpa
31. Rear Tire Pressure: 0.35 Mpa
We have various models of compact wheel loaders that can meet your different capacity needs. Any colors are available upon request.
All specifications and design characteristics are subject to change without prior notice.
